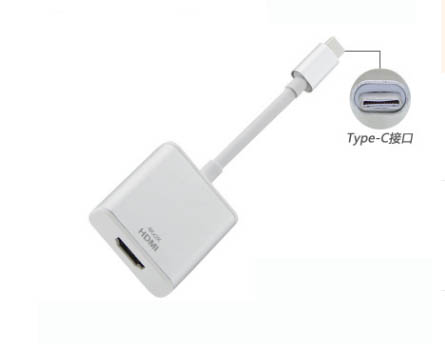

TYPE C TO HDMI Adapter Aluminium Housing (4K30Hz)
Model No:EKL-086
* Support apple new Macbook, Google Chromebook Pixel, Other USB Type- C Source
* Flexible USB Type-C Switching Support for USB 5G and Display Port 1.2 Alt mode
* HDMI 1.4b transmitter, up to 3.0Gbps supporting 3D 1080p and 4K x 2K @30Hz 24 bit color
* Length:0.2M
Detail
* HDMI 1.4b transmitter, up to 3.0Gbps supporting 3D 1080p and 4K x 2K @30Hz 24 bit color
* Integrates a complete DisplayPortTM receiver and complete HDMI transmitter for video format conversion
* Fully compliant HDMI output, up to 300 MHz TMDS clock, supports HDMI 1.4 video formats ·Fully compliant DisplayPort input, video and audio ·Full HDCP 1.3 content protection support
* RGB at 6/8/10/12 bpc (bits-per-component) supported
* YCbCr 4:4:4 and YCbCr 4:2:2 8/10/12 bpc supported
* Supports 1, 2, and 4 lanes at both 1.62 Gbps and 2.7 Gbps data rates
* Built-in automatic receiver equalization
* Supports both full link training and no link training operation
* Video input formats: RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 up to 12 bpc
* Integrates a complete DisplayPortTM receiver and complete HDMI transmitter for video format conversion
* Fully compliant HDMI output, up to 300 MHz TMDS clock, supports HDMI 1.4 video formats ·Fully compliant DisplayPort input, video and audio ·Full HDCP 1.3 content protection support
* RGB at 6/8/10/12 bpc (bits-per-component) supported
* YCbCr 4:4:4 and YCbCr 4:2:2 8/10/12 bpc supported
* Supports 1, 2, and 4 lanes at both 1.62 Gbps and 2.7 Gbps data rates
* Built-in automatic receiver equalization
* Supports both full link training and no link training operation
* Video input formats: RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 up to 12 bpc
* Supports reduced blanking or reduced refresh rate timing modes
* Chassis Material:Aluminium Housing
* Length:0.2M
