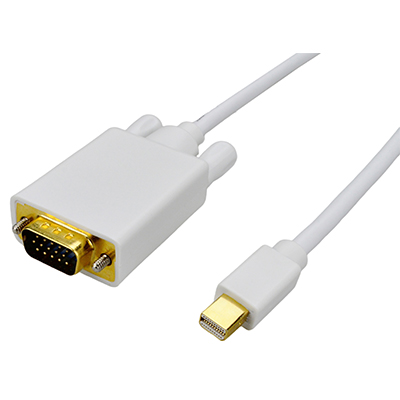

Mini DisplayPort/M TO VGA Cable
Model No:EKL-012
* Compliant with DisplayPort specification version 1.2 and Embedded DisplayPort (eDP) specification version 1.3
* Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
* Support analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate
* Support VESA and CEA timing standards up to 1920x1200@60Hz
* Length:1.8M
Detail
* Compliant with DisplayPort specification version 1.2 and Embedded DisplayPort (eDP) specification version 1.3
* Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
* Support analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate
Sync signals can be provided in separated or composite manner
* Support VESA and CEA timing standards up to 1920x1200@60Hz
* VGA output is compliant with VESA VSIS v 1 r2 specification
* Support HDCP specification 1.3
* Fast and full Link Training for embedded DisplayPort system
* DAC connection detection supported
* DP input detection supported
* Support Auto Power Saving mode and low stand-by current
* Low power architecture
* Support 2 Main Link Lanes at either 1.62Gb/s or 2.7Gb/s link rate
* Support analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate
Sync signals can be provided in separated or composite manner
* Support VESA and CEA timing standards up to 1920x1200@60Hz
* VGA output is compliant with VESA VSIS v 1 r2 specification
* Support HDCP specification 1.3
* Fast and full Link Training for embedded DisplayPort system
* DAC connection detection supported
* DP input detection supported
* Support Auto Power Saving mode and low stand-by current
* Low power architecture
* Length:1.8M
